NETWERKVERDELER 1CEPEX 4NF IP44
Artikelreferentie: M25719

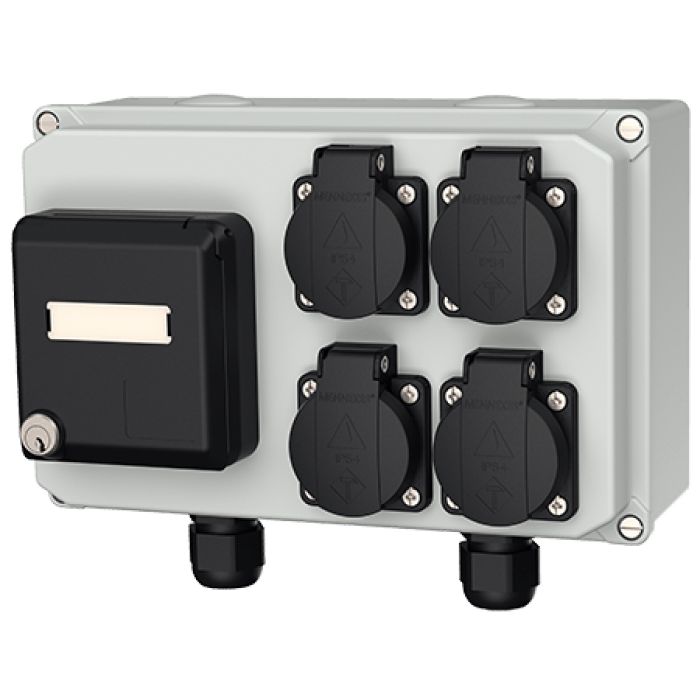

MENNEKES receptacle combination ready wired for installation enclosure protection Type IP 44
enclosure:
1 enclosure made of polycarbonate 160x245 mm (hxw) grey RAL 7035
fitted With/fused With:
4 grounding-type receptacles 16A 2p+E 230V black french/belgian system, child proof receptacle
1 empty enclosure for data socket Cepex with 2 RJ 45 quick-connection-bushing category 6 , make AMP (type TWIST 6SL Jack) with labelling field, lockable enclosure protection type IP 44 black RAL 9005
cable entry/supply
2 M 25 at the top (closed)
1 cable gland M25 at the bottom
1 cable gland M25 (3 x 5-7 mm) at the bottom
terminal for 1 cable up to 5 x 4 mm²
- Gewicht:
- 1,500 kg / stuk
- Beschermingsgraad:
- IP44
- Kleur behuizing:
- Lichtgrijs
- Aansluittechniek:
- 1 terminal
- Type beschermcontact:
- Penaarde
- Kinderveiligheid:
- Ja
- Wijze van plaatsen:
- Opbouw
- Contactdoos 16A, 2P+PE, 230V:
- 4
- Data-aansluiting RJ45:
- 2
- Met beveiliging:
- Neen
- Grondstof:
- Amaplast
- Aantal geleiders:
- 1 kabel 5x4mm²
- Behoort tot:
- Energie / data verdelers
