COMBI RVS CEE63A5P400 2CEE32A5P400
Artikelreferentie: M6208734

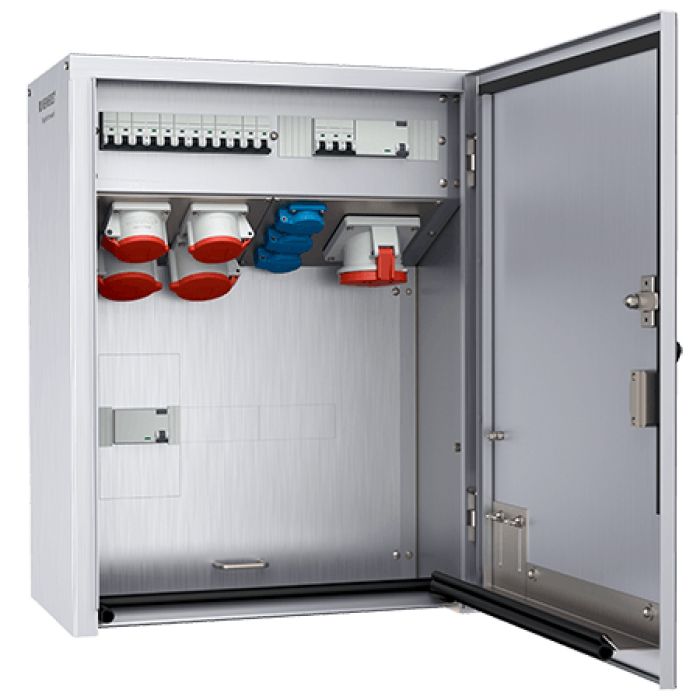

MENNEKES receptacle combination ready wired for installation enclosure protection type IP 44
enclosure:
1 enclosure made of flat finished stainless steel material: 1.4301; K240
Dimensions: 700 x 530 x 350 mm (h x w x d)
fitted with/fused with:
1 CEE receptacle 63A 5p 400V
2 CEE receptacles 32A 5p 400V
2 MCB's 32A 3p+N C
2 CEE receptacles 16A 5p 400V
2 MCB's 16A 3p+N C
3 grounding-type receptacles 16A 2p+E 230V blue french/belgian system, child proof receptacle
3 MCB's 16A 1p+N C
1 RCD 63A 4p IFN=0,03A
1 MCB 63A 3p+N C
1 RCD 63A 4p IFN=0,03A
1 MCB 63A 3p+N C
cable entry/supply:
2 cable entry sleeves at the bottom (for cable diameter 13-49 mm)
2 brass screw-plugs M16 at the bottom
1 brass screw-plug M20 at the bottom
terminal for 2 cables up to 5 x 50 mm²
Front door with swing handle and cylinder lock - lockable even when plugs are connected.
Standard door stop on right
total weight: approx. 50 KG
acc. to IEC 61439:
Fuse 125 A
RDF 0,4
InA 70 A
- Gewicht:
- 49,000 kg / stuk
- Beschermingsgraad:
- IP44
- Kleur behuizing:
- Grijs
- Wijze van plaatsen:
- Opbouw / Vrijstaand
- CEE 63A, 5P, 400V:
- 1
- CEE 32A, 5P, 400V:
- 2
- Met beveiliging:
- Ja
- Grondstof:
- RVS
- Behoort tot:
- RVS combinatiekasten
