AMAXX S CEE32A5P400 3NF AUT IP44
Artikelreferentie: M960580

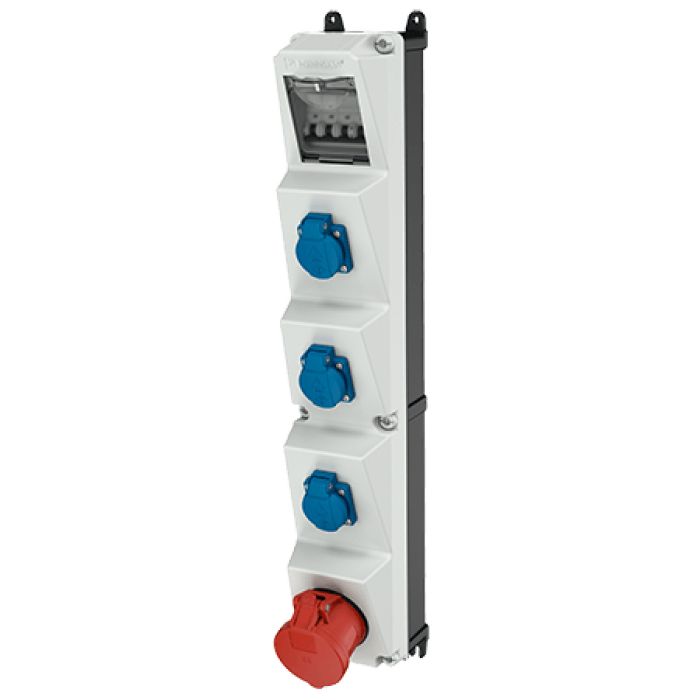

MENNEKES receptacle combination unit AMAXX S ready wired for installation enclosure protection Type IP 44
enclosure:
1 AMAPLAST-enclosure 650x113 mm (h x w) lead-sealable, for internal or external fixing
black base
front cover electric grey RAL 7035 with dual thread cover screws
fusing below transparent window
window open downwards and can be locked with padlock
receptacles with angled plugging direction
fitted with/fused with:
1 CEE receptacle 32A 5p 400V
3 grounding-type receptacles 16A 2p+E 230V blue french/belgian system, with shutter
3 MCBs 16A 1p+N C (ABB)
cable entry/supply:
1 M 25 at the top (open)
1 M 25 at the bottom (closed)
1 M 20 at the top and at the bottom right side (closed)
for 1 cable up to 5 x 10 mm²
Check additional protection by RCD on site.
Consider standard IEC 60364-4-41!
acc. to IEC 61439:
Fuse 32 A
RDF 1
InA 32 A
- Gewicht:
- 3,500 kg / stuk
- Soort artikel:
- 5 segmenten
- Beschermingsgraad:
- IP44
- Kleur behuizing:
- Lichtgrijs
- Aansluittechniek:
- 1 terminal
- Type beschermcontact:
- Penaarde
- Kinderveiligheid:
- Ja
- Wijze van plaatsen:
- Opbouw
- CEE 32A, 5P, 400V:
- 1
- Contactdoos 16A, 2P+PE, 230V:
- 3
- Met beveiliging:
- Ja
- Grondstof:
- Amaplast
- Aantal geleiders:
- 1 kabel 5x10mm²
- Behoort tot:
- AMAXX S
