AMAXX S CEE32A,16A5P400 2NF 2RJ45 IP44
Artikelreferentie: M960635

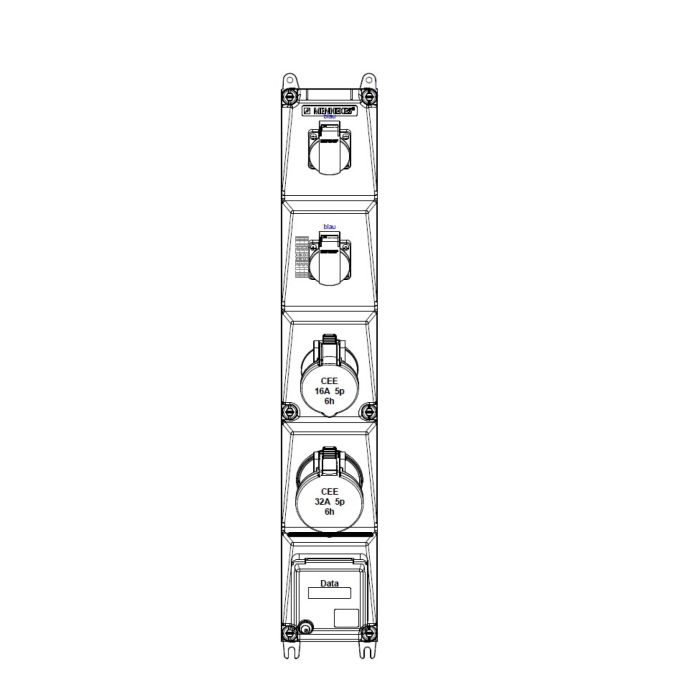

MENNEKES receptacle combination unit AMAXX S ready wired for installation enclosure protection Type IP 44
enclosure:
1 AMAPLAST-enclosure 650x113 mm (h x w) lead-sealable, for internal or external fixing
black base
front cover electric grey RAL 7035
with dual thread cover screws
fitted with/fused with:
1 CEE receptacle 32A 5p 400V Rapido
1 CEE receptacle 16A 5p 400VRapido
2 grounding-type receptacles 16A 2p+E 230V blue french/belgian system
terminal for 1 cable up to 3 x 4 mm²
2 RJ45 2way Datasockets Cat. 6
cable entry/supply:
1 M 25 at the top (open)
1 M 25 at the bottom (closed)
1 M 20 at the top and at the bottom right side (closed)
Check additional protection by RCD on site.
Consider standard IEC 60364-4-41!
- Gewicht:
- 3,000 kg / stuk
- Soort artikel:
- 5 segmenten
- Beschermingsgraad:
- IP44
- Kleur behuizing:
- Lichtgrijs
- Aansluittechniek:
- 1 terminal
- Type beschermcontact:
- Penaarde
- Kinderveiligheid:
- Ja
- Wijze van plaatsen:
- Opbouw
- CEE 32A, 5P, 400V:
- 1
- CEE 16A, 5P, 400V:
- 1
- Contactdoos 16A, 2P+PE, 230V:
- 2
- Data-aansluiting RJ45:
- 2
- Met beveiliging:
- Neen
- Grondstof:
- Amaplast
- Aantal geleiders:
- 1 kabel 3x4mm²
- Behoort tot:
- AMAXX S
