AMAXX S CEE16A5P400 4NF IP44

Artikelreferentie: M960268

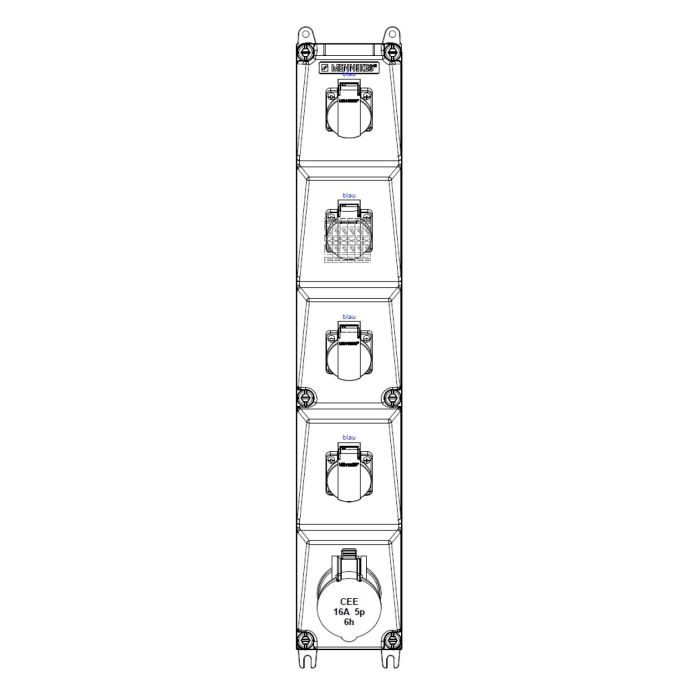

MENNEKES receptacle combination unit AMAXX S ready wired for installation enclosure protection Type IP 44

enclosure:
1 AMAPLAST-enclosure 650x113 mm (h x w)
black base
front cover electric grey RAL 7035

fitted With/fused With:
1 CEE receptacle 16A 5p 400V Rapido
4 grounding-type receptacles 16A 2p+E 230V blue french/belgian system, child proof receptacle

cable entry/supply
1 M 25 at the top (open)
1 M 25 at the bottom (closed)
1 M 20 at the top and at the bottom right side (closed)
terminal for 1 cable up to 5*6 mm²

Gewicht:
2,700 kg / stuk
Soort artikel:
5 segmenten
Beschermingsgraad:
IP44
Kleur behuizing:
Lichtgrijs
Aansluittechniek:
1 terminal
Type beschermcontact:
Penaarde
Kinderveiligheid:
Ja
Wijze van plaatsen:
Opbouw
CEE 16A, 5P, 400V:
1
Contactdoos 16A, 2P+PE, 230V:
4
Met beveiliging:
Neen
Grondstof:
Amaplast
Aantal geleiders:
1 kabel 5x6mm²
Behoort tot:
AMAXX S
