AMAXX S 3NF AUT 2RJ45 IP44
Artikelreferentie: M960627

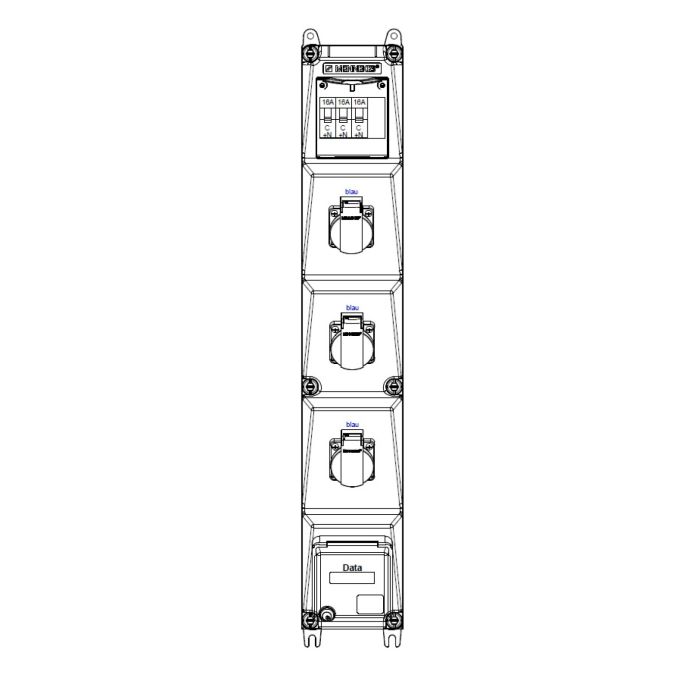

MENNEKES receptacle combination unit AMAXX S ready wired for installation enclosure protection Type IP 44
enclosure:
1 AMAPLAST-enclosure 650x113 mm (h x w) lead-sealable, for internal or external fixing
black base
front cover electric grey RAL 7035 with dual thread cover screws
fusing below transparent window
window open downwards and can be locked with padlock
receptacles with angled plugging direction
fitted with/fused with:
3 grounding-type receptacles 16A 2p+E 230V blue french/belgian system
3 MCBs 16A 1p+N C 10kA (ABB) for 1 cable up to 3 x 10 mm²
1 data socket with 2 RJ45 BTR (same locking)
cable entry/supply:
1 M 25 at the top (open)
1 M 25 at the bottom (closed)
1 M 20 at the top and at the bottom right side (closed)
Check additional protection by RCD on site.
Consider standard IEC 60364-4-41!
acc. to IEC 61439:
Fuse 63 A
RDF 1
InA 16 A
- Soort artikel:
- 5 segmenten
- Beschermingsgraad:
- IP44
- Kleur behuizing:
- Lichtgrijs
- Aansluittechniek:
- 1 terminal
- Type beschermcontact:
- Penaarde
- Kinderveiligheid:
- Ja
- Wijze van plaatsen:
- Opbouw
- Contactdoos 16A, 2P+PE, 230V:
- 3
- Data-aansluiting RJ45:
- 2
- Met beveiliging:
- Ja
- Grondstof:
- Amaplast
- Aantal geleiders:
- 1 kabel 3x10mm²
- Behoort tot:
- AMAXX S
