AMAXX OPHANGBAAR GEEL IP44
Artikelreferentie: M970200GE

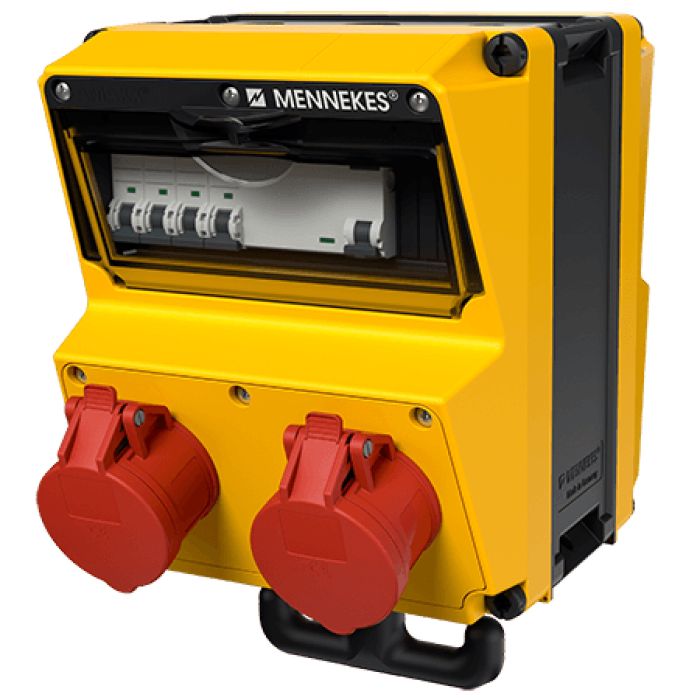

MENNEKES recaptacle combination unit AMAXX
hanging ready wired for installation
enclosure protection Type IP 44
enclosure:
1 AMAPLAST-enclosure 260 x 225 mm (h x w)
lead-sealable suspendable with two ring loops,
handle at the bottom and attached chain set
black frame front covers yellow
hinged cover with dual thread cover screws
fusing fitted on pull out DIN rails below transparent window
window open downwards and can be locked with padlock
receptacles with angled plugging direction
fitted With/fused With:
2 CEE receptacles 16A 5p 400V
1 MCB 16A 3p+N C
4 grounding-type receptacles 16A 2p+E 230V black
french/belgian system, with shutter
4 MCBs 16A 1p+N C
1 RCD 40A 4p IFN= 0,03 A
cable entry/supply:
1x M 32 at the top (closed)
1x M 25 at the top (closed)
1x M 20 at the top (closed)
for 1 cable up to 5* 10 mm²
acc. to IEC 61439:
Fuse 40 A
RDF 0,65
InA 37 A
- Gewicht:
- 6,500 kg / stuk
- Beschermingsgraad:
- IP44
- Kleur behuizing:
- Geel
- Wijze van plaatsen:
- Ophangbaar
- CEE 16A, 5P, 400V:
- 2
- Contactdoos 16A, 2P+PE, 230V:
- 4
- Met beveiliging:
- Ja
- Grondstof:
- Amaplast
- Behoort tot:
- AMAXX
