AMAXX CEE32A5P400 MCB32A4P CEE16A5P400
Artikelreferentie: M930035
![](https://www.stagobel.be/media/newance_brands/m/e/mennekes_logo_f_r_web_anwendungen.jpg)

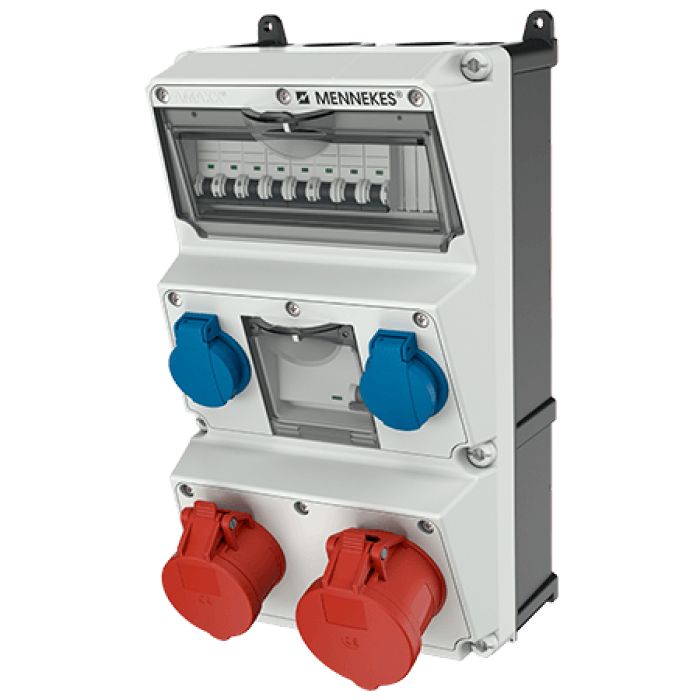

MENNEKES recepacle combination unit AMAXX ready wired enclosure protection type IP 44
enclosure:
1 AMAPLAST-enclosure 390 x 225 mm (h x w)
black base
front cover electric grey RAL 7035
hinged cover
fuses below transparent window
fitted with/ fused with:
1 CEE receptacles 32A 5p 400V
1 MCB´s 32A 3p+N C
1 CEE receptacles 16A 5p 400V
1 MCB´s 16A 3p+N C
2 SCHUKO receptacles 16A 2p+E 230V french/belg. system, with shutter
2 MCB's 16A 1p+N C (1 mod.)
1 RCD/ELCB 40A 4p IFN 0,03A
cable entry/ supply:
2 x M40 at the top (on the left side open, on the right side closed)
2 x M40 at the bottom (closed)
2 x M20 at the top and at the bottom (closed)
for 1 cable up to 5 x 25 mm²
Receptacle combination acc. to IEC 61439:
Fuse 40 A
RDF 0,6
InA 38 A
- Gewicht:
- 5,700 kg / stuk
- Soort artikel:
- 3 segmenten
- Beschermingsgraad:
- IP44
- Kleur behuizing:
- Lichtgrijs
- Aansluittechniek:
- 1 terminal
- Type beschermcontact:
- Penaarde
- Kinderveiligheid:
- Ja
- Wijze van plaatsen:
- Opbouw
- CEE 32A, 5P, 400V:
- 1
- CEE 16A, 5P, 400V:
- 1
- Contactdoos 16A, 2P+PE, 230V:
- 2
- Met beveiliging:
- Ja
- Grondstof:
- Amaplast
- Aantal geleiders:
- 1 kabel 5x25mm²
- Behoort tot:
- AMAXX
