AMAXX CEE16A,CEE32A5P6H400V 3NF IP44
Artikelreferentie: M940023

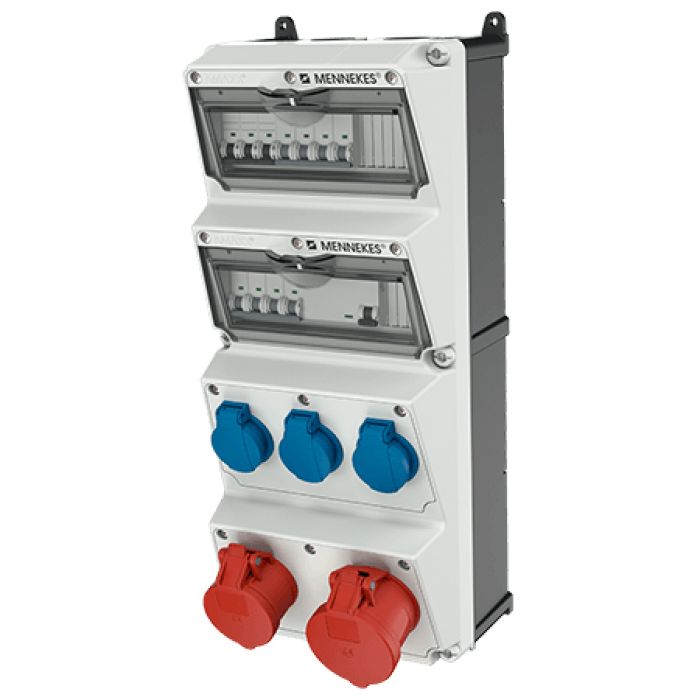

MENNEKES receptacle combination unit AMAXX ready wired for installation enclosure protection Type IP 44
enclosure:
1 AMAPLAST-enclosure 520 x 225 mm (h x w) lead-sealable, for internal or external fixing
black base
front cover electric grey RAL 7035
hinged cover with dual thread cover screws
fusing fitted on pull out DIN rails below transparent windows
windows open downwards and can be locked with padlock
receptacles with angled plugging direction
fitted with/fused with:
1 CEE receptacle 32A 5p 400V
1 MCB 32A 3p+N C
1 CEE receptacle 16A 5p 400V
1 MCB 16A 3p+N C
3 grounding-type receptacles 16A 2p+E 230V french/belgian system, with shutter
3 MCBs 16A 1p+N C
1 RCD 63A 4p IFN= 0,03 A
all MCB's and RCB's are supplyed at the top
cable entry/supply:
2 M 40 at the top and at the bottom (closed)
2 M 20 at the top and at the bottom (closed)
terminal for 2 cables up to 5 x 25 mm² (flexible max. 16mm²)
Receptacle combination acc. to IEC 61439:
Fuse 100 A
RDF 0,6
InA 38 A
- Gewicht:
- 9,560 kg / stuk
- Soort artikel:
- 4 segmenten
- Beschermingsgraad:
- IP44
- Kleur behuizing:
- Lichtgrijs
- Aansluittechniek:
- 1 terminal
- Type beschermcontact:
- Penaarde
- Kinderveiligheid:
- Ja
- Wijze van plaatsen:
- Opbouw
- CEE 32A, 5P, 400V:
- 1
- CEE 16A, 5P, 400V:
- 1
- Contactdoos 16A, 2P+PE, 230V:
- 3
- Met beveiliging:
- Ja
- Grondstof:
- Amaplast
- Aantal geleiders:
- 2 kabels 5x25mm²
- Behoort tot:
- AMAXX
