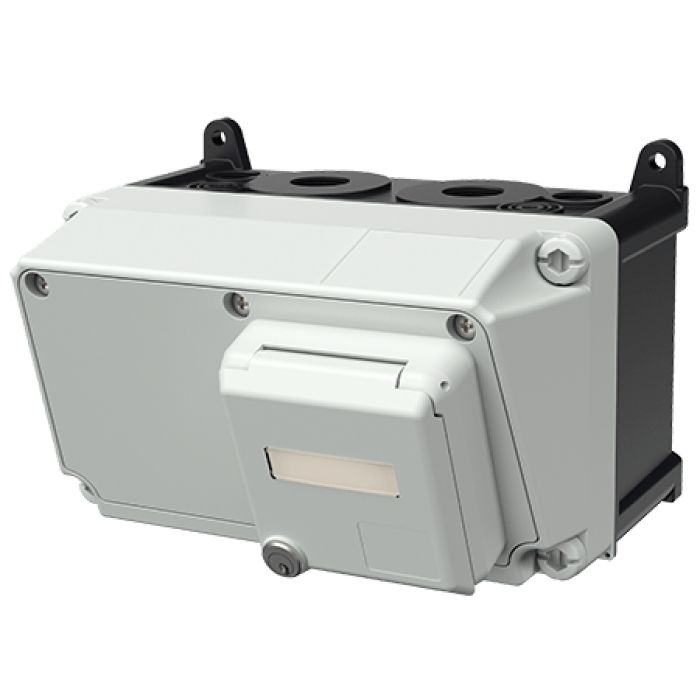

AMAXX 1CEPEX 2X RJ45 (BTR) GRIJS IP44
Artikelreferentie: M25104
Network enclosure AMAXX AMAPLAST enclosure size: 130 x 225mm
Closed top part protection class IP 67
bottom part black
top part grey RAL 7035
fitted with:
1 Cepex data port receptacle (Part.no.4342G) for 2 E-DAT angle connectors 8(8) 90°, RJ45 (to patchen) as OpDAT modul LC or ST (make BTR),
identical locks
delivery: without Data module
Cable entries:
2x M 25 top (open on the left, closed on the right),
2x M 25 bottom (closed),
2x M 20 each top and bottom (closed)
bottom part with screw-in nuts for installation of a floor-mounted base including a height-adjustable mounting rail with mounting rail catches as well as a cable gland set with multiple seal.
This network version is suitable for seperate mounting or it also can be fixed at one side or underneath of a already existing AMAXX receptacle combination unit.
- Gewicht:
- 1,000 kg / stuk
- Soort artikel:
- 1 segment
- Beschermingsgraad:
- IP44
- Kleur behuizing:
- Lichtgrijs
- Aansluittechniek:
- Patch kabel
- Wijze van plaatsen:
- Opbouw
- Data-aansluiting RJ45:
- 2
- Grondstof:
- Amaplast
- Behoort tot:
- AMAXX
