COMBI INOX 32A-16A5P400V 2NF DIFF DISJ
Référence d'article: M83744NF

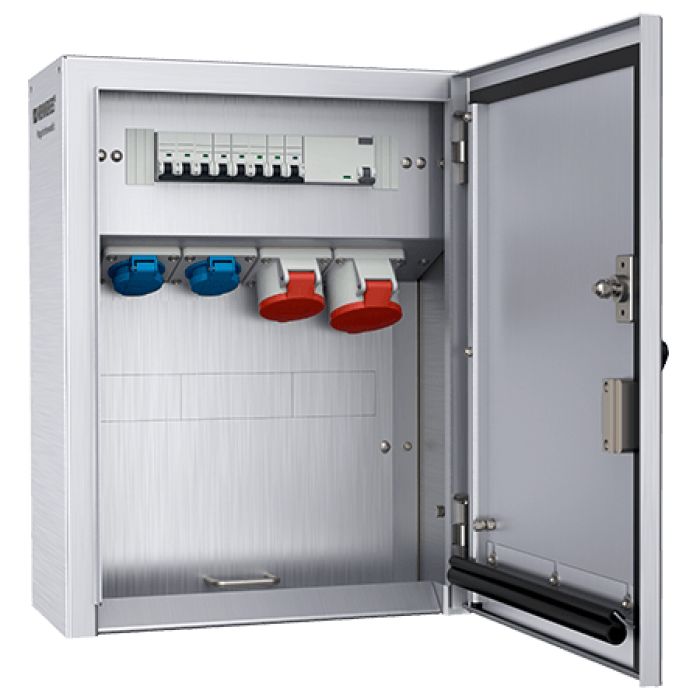

MENNEKES receptacle combination ready wired for installation enclosure protection type IP 44
enclosure:
1 enclosure made of flat finished stainless steel material: 1.4301; K240
dimensions: 530 x 400 x 220 mm (h x w x d)
fitted with/fused with:
1 CEE receptacle 32A 5p 400V
1 MCB 32A 3p+N C
1 CEE receptacle 16A 5p 400V
1 MCB 16A 3p+N C
2 SCHUKO receptacles 16A 2p+E 230V french/belgian standard
2 MCB's 16A 1p+N C
1 RCD 63A 4p IFN=0,03A
cable entry/supply:
2 entry nipples M32 on bottom
2 brass screw plugs M16 on bottom
terminal (safe to touch acc. to BGVA2) for 2 cables up to 5 x 25mm²
front door with swing handle and cylinder lock - lockable even when plugs are
connected
standard door stop on right
Receptacle combination acc. to IEC 61439:
Fuse 63 A
RDF 0,7
InA 44 A
- Poids:
- 22,750 kg / pièce
- Degré de protection:
- IP44
- Couleur enveloppe:
- Gris
- Mode d'installation:
- Apparent / Autonome
- CEE 32A, 5P, 400V:
- 1
- CEE 16A, 5P, 400V:
- 1
- Prise 16A, 2P+PE, 230V:
- 2
- Avec protection:
- Oui
- Matériau:
- INOX
- Appartient à:
- Coffrets combine en INOX
