AMAXX 4NF DIFF DISJ STOP URGENCE
Référence d'article: M923523
MENNEKES receptacle combination unit AMAXX ready wired for installation enclosure protection Type IP 44
enclosure:
1 carrying handle

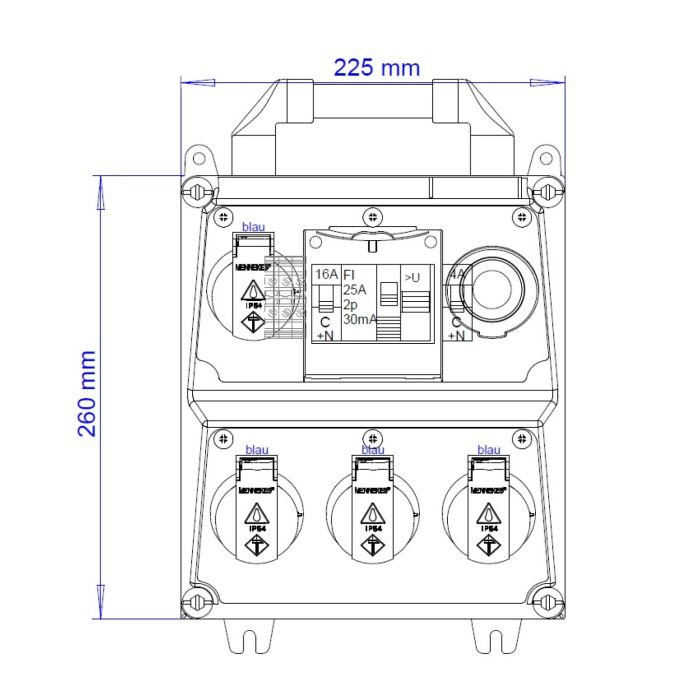

1 AMAPLAST-enclosure 260 x 225 mm (h x w) lead-sealable, for internal or external fixing
black base
front cover electric grey RAL 7035
hinged cover with dual thread cover screws
fusing fitted on pull out DIN rails below transparent window
window open downwards and can be locked with padlock
receptacles with angled plugging direction
fitted With/fused With:
4 grounding-type receptacles 16A 2p+E 230V blue french/belgian system, with shutter
1 MCB 16A 1p+N C (ABB)
1 RCD 25A 2p IFN= 0,03 A (ABB) + 1 shunt trip
1 push button (red) with 1 NO
cable entry/supply:
2 M 32 at the top and at the bottom (closed)
2 M 20 at the top and at the bottom (closed)
terminal for 1 cable up to 3 x 6 mm²
Receptacle combination acc. to IEC 61439:
Fuse 63 A
RDF 1
InA 16 A
- Genre d'article:
- 2 segments
- Degré de protection:
- IP44
- Couleur enveloppe:
- Gris clair
- Technologie de connexion:
- 1 terminal
- Type contact de protection:
- Broche de terre
- Protection enfants:
- Oui
- Mode d'installation:
- Portable
- Prise 16A, 2P+PE, 230V:
- 4
- Avec protection:
- Oui + stop urgence
- Matériau:
- Amaplast
- Nombre de conducteurs:
- 1 câble 3x6mm²
- Appartient à:
- AMAXX
